Santa Cruz Megatower

—

After I trashed my Hightower frame, I got a crash-replacement Megatower CC. Switching frame meant getting a longer travel fork and shock. Then I also changed the brakes, later broke my derailleur, replaced my never-working dropper seatpost, worn out my cassette and chainring. So yeah, with the exception of the wheels, I more or less got a new bike in 2020–2021.

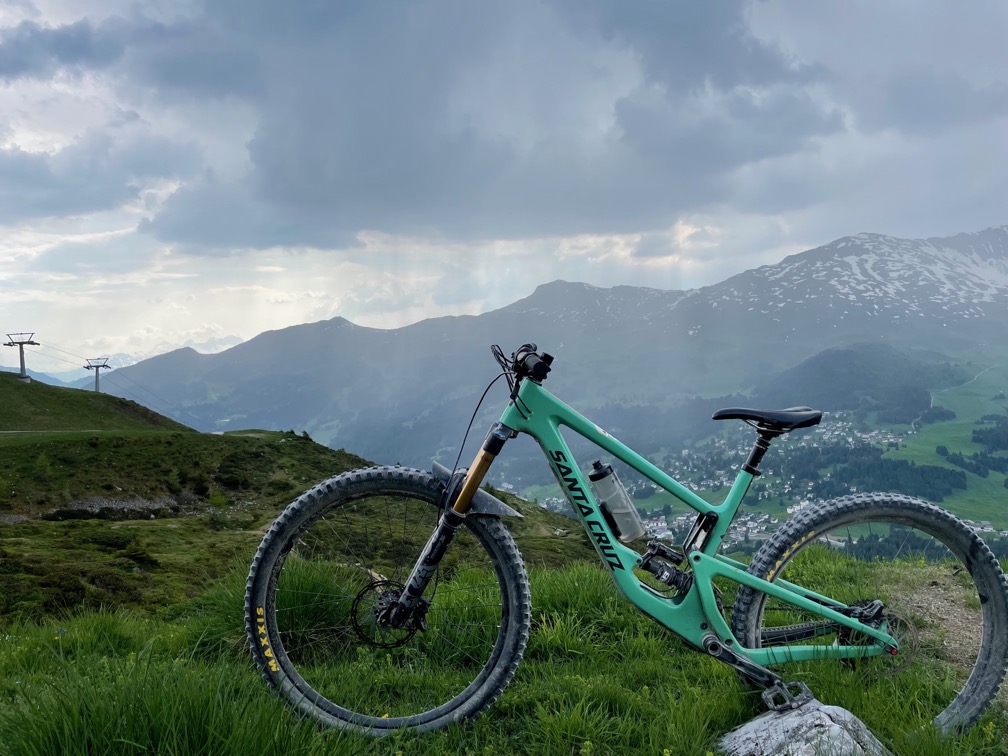

June 2021 in Lenzerheide
June 2021 in Lenzerheide

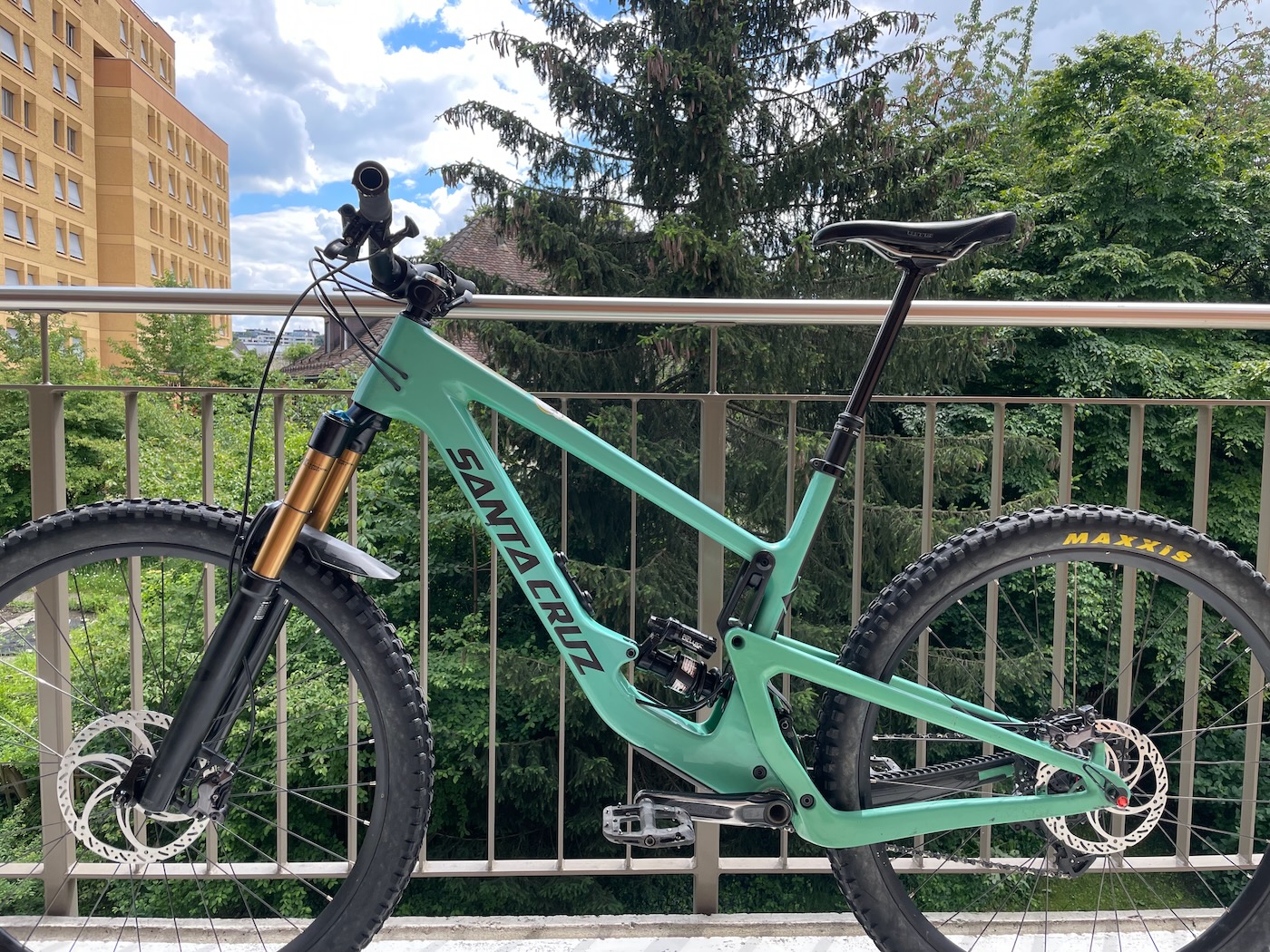

June 2024: new brakes and disks, new handlebar
June 2024: new brakes and disks, new handlebar
Part Brand / Model Details
Frame Santa Cruz Megatower
  • v1
  • CC
  • XL
  • Compatible Forks: 160-180mm
  • Headtube/Headset: Tapered - Integrated Headset. 1-1/8" Upper bearing and 1.5" Lower bearing. S.H.I.S. IS 41/28.6 IS 52/40
  • Seat Post: 31.6mm - Minimum Insertion 100mm
  • Front Derailleur: N/A - Single Front Chainring Only
  • BB Shell Width: 73mm - Threaded - ISO
  • Max Brake Rotor Size: 223mm
  • Rear Hub: 148x12mm Through Axle
  • Seatpost Clamp: 36.4mm
  • Shock Eye-to-Eye: 230
  • Shock Stroke: 57.5
  • Shock Mounting Bushing Width Front: 20x8
  • Shock Mounting Bushing Width Rear: 30x8
  • Geometry (High setting): Reach 490mm, Stack 643mm, Head Tube Angle 65°, Seat Tube Length 460mm, Front Center 825mm, BB Height 343mm, BB Drop 29mm, Wheelbase 1260mm, Rear Center 435mm, Head Tube Length 130mm, Top Tube Length 646mm, Seat Tube Angle 76.3°, Standover Height 711mm

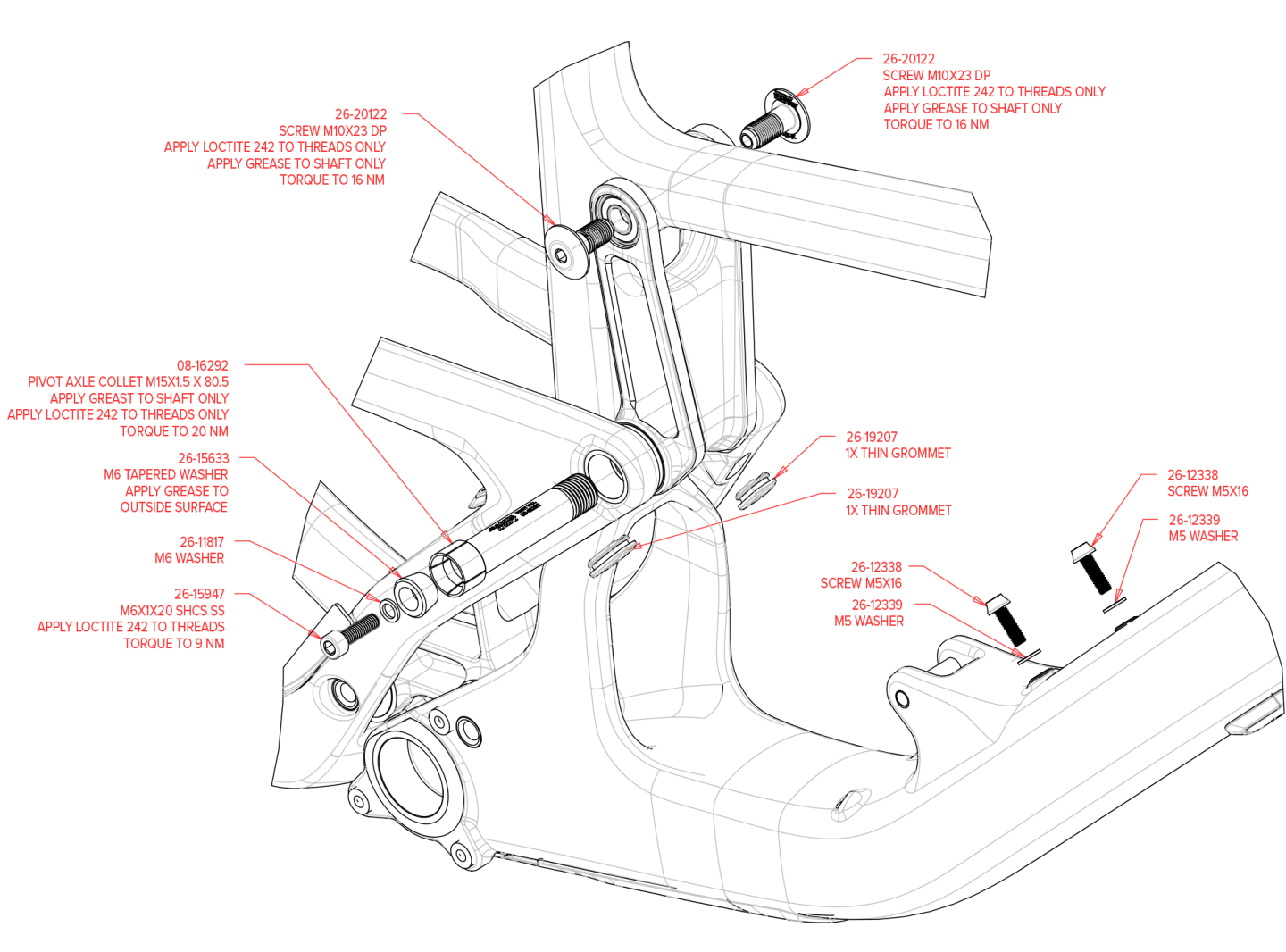

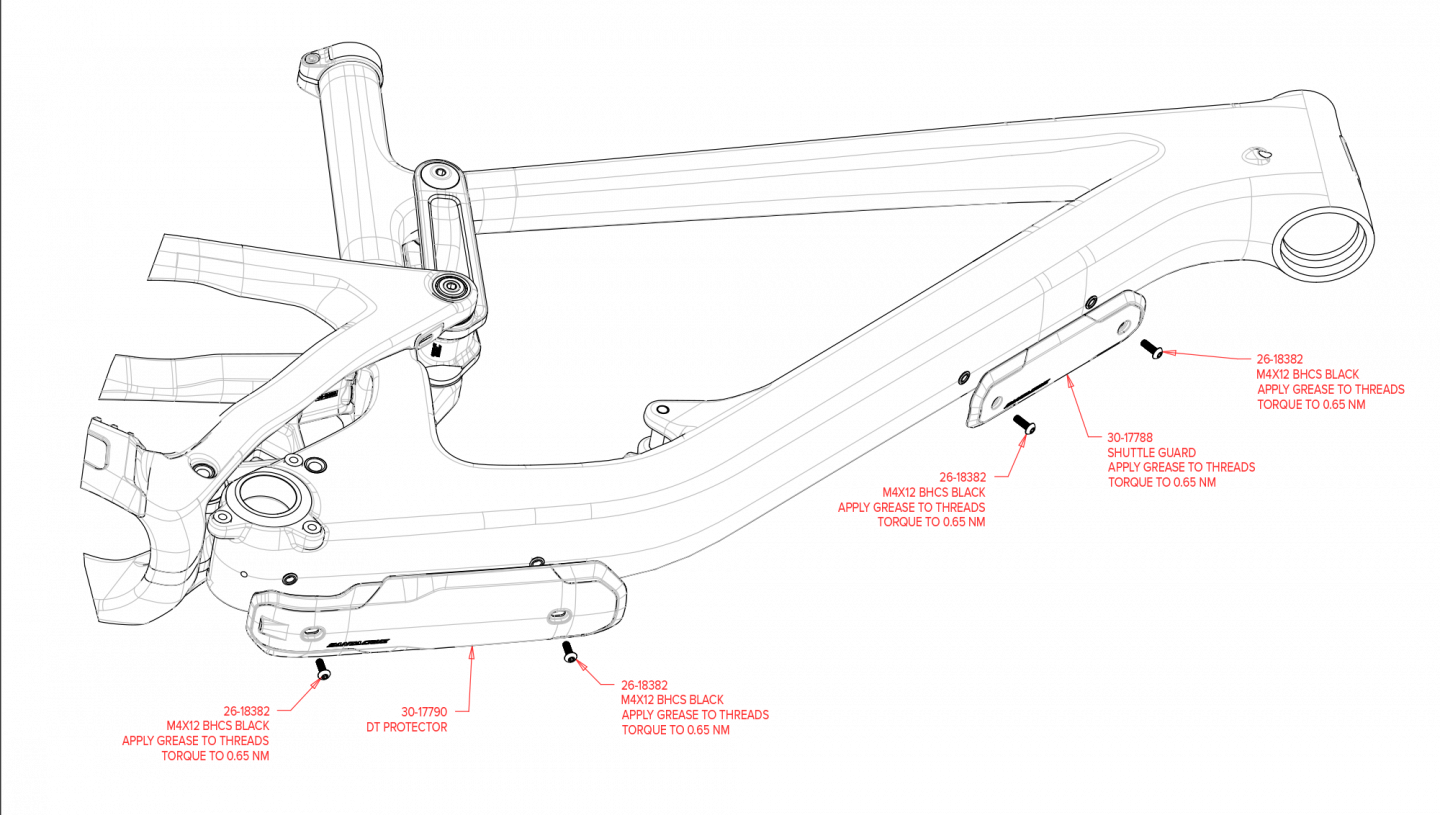

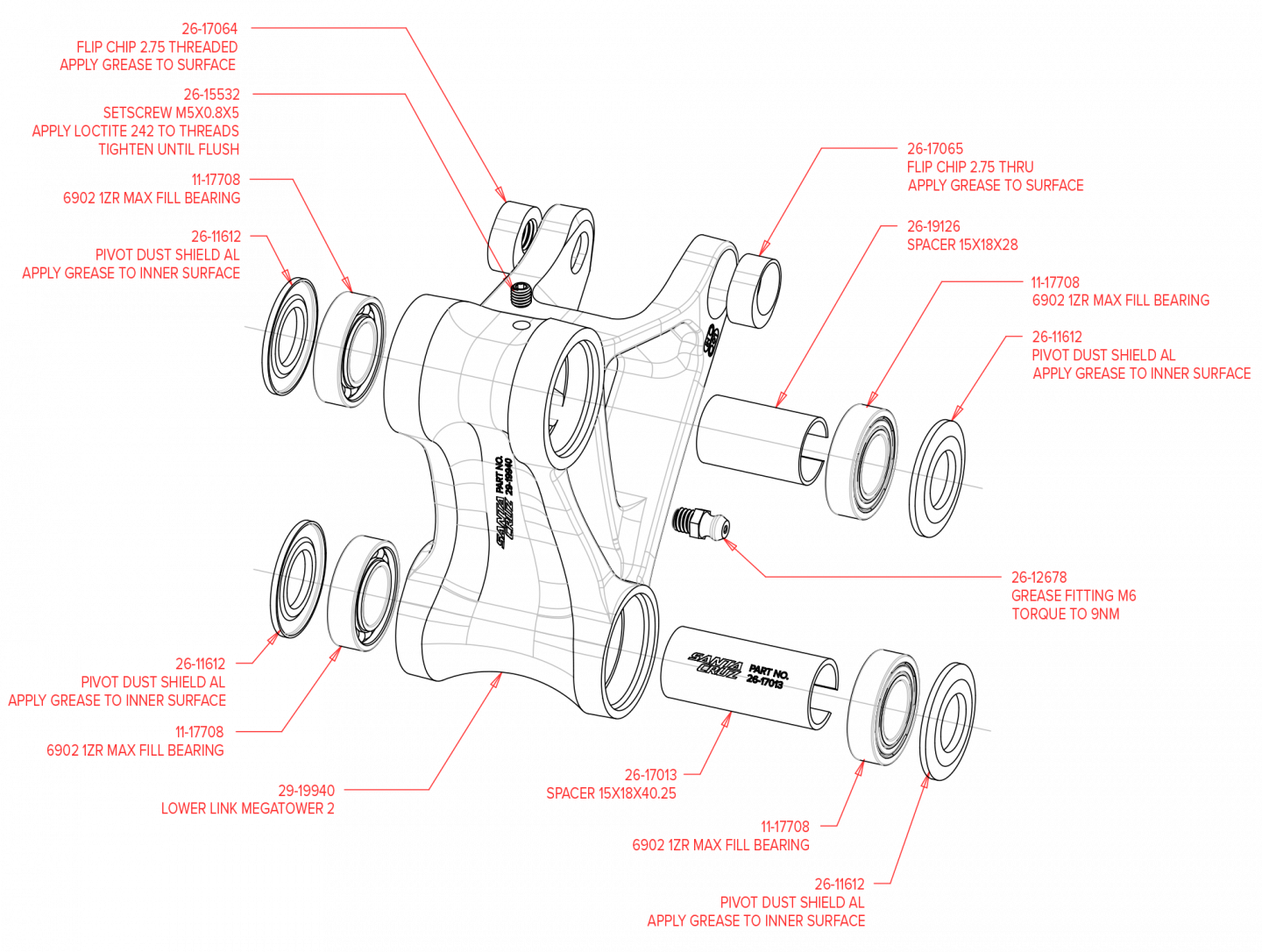

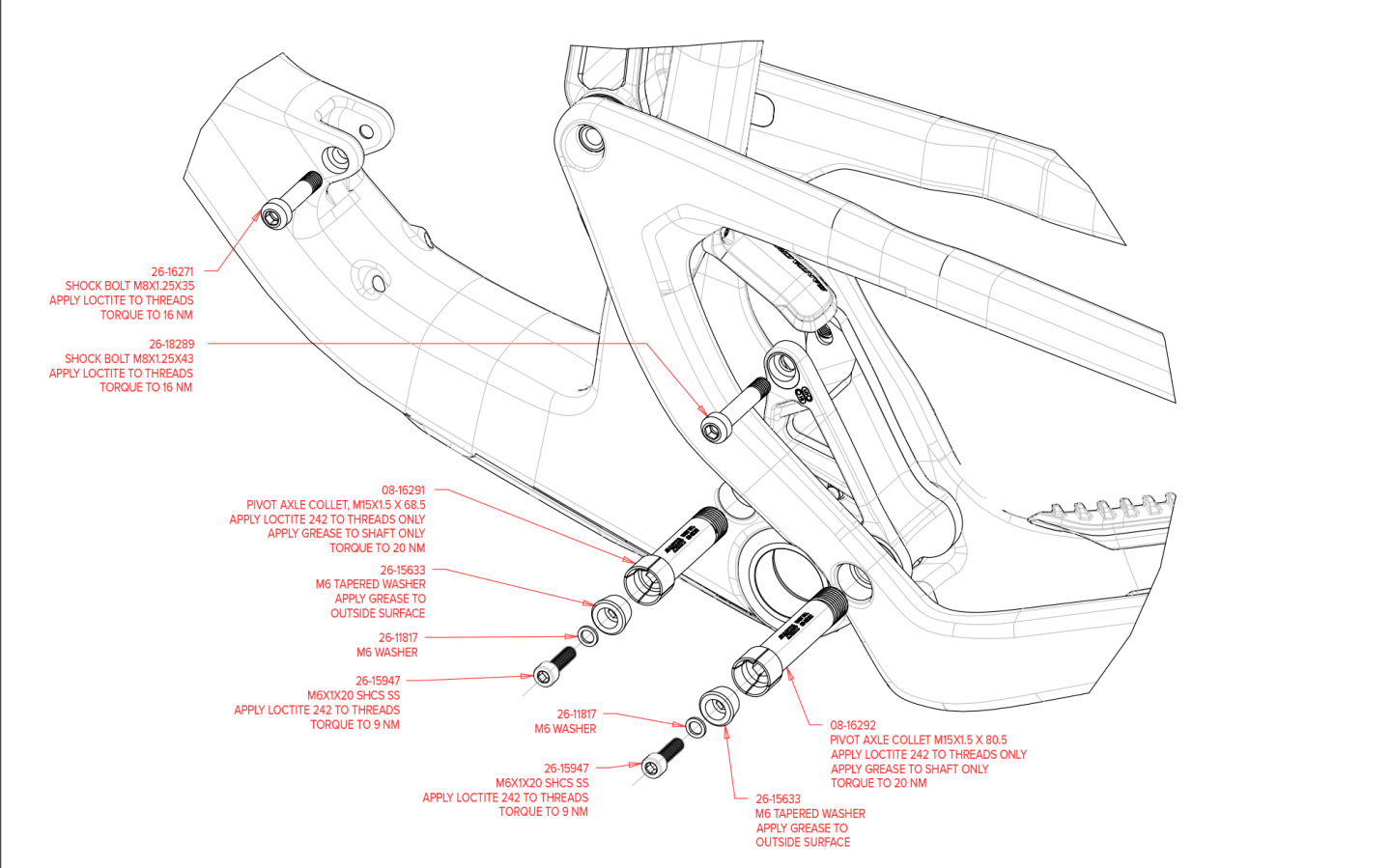

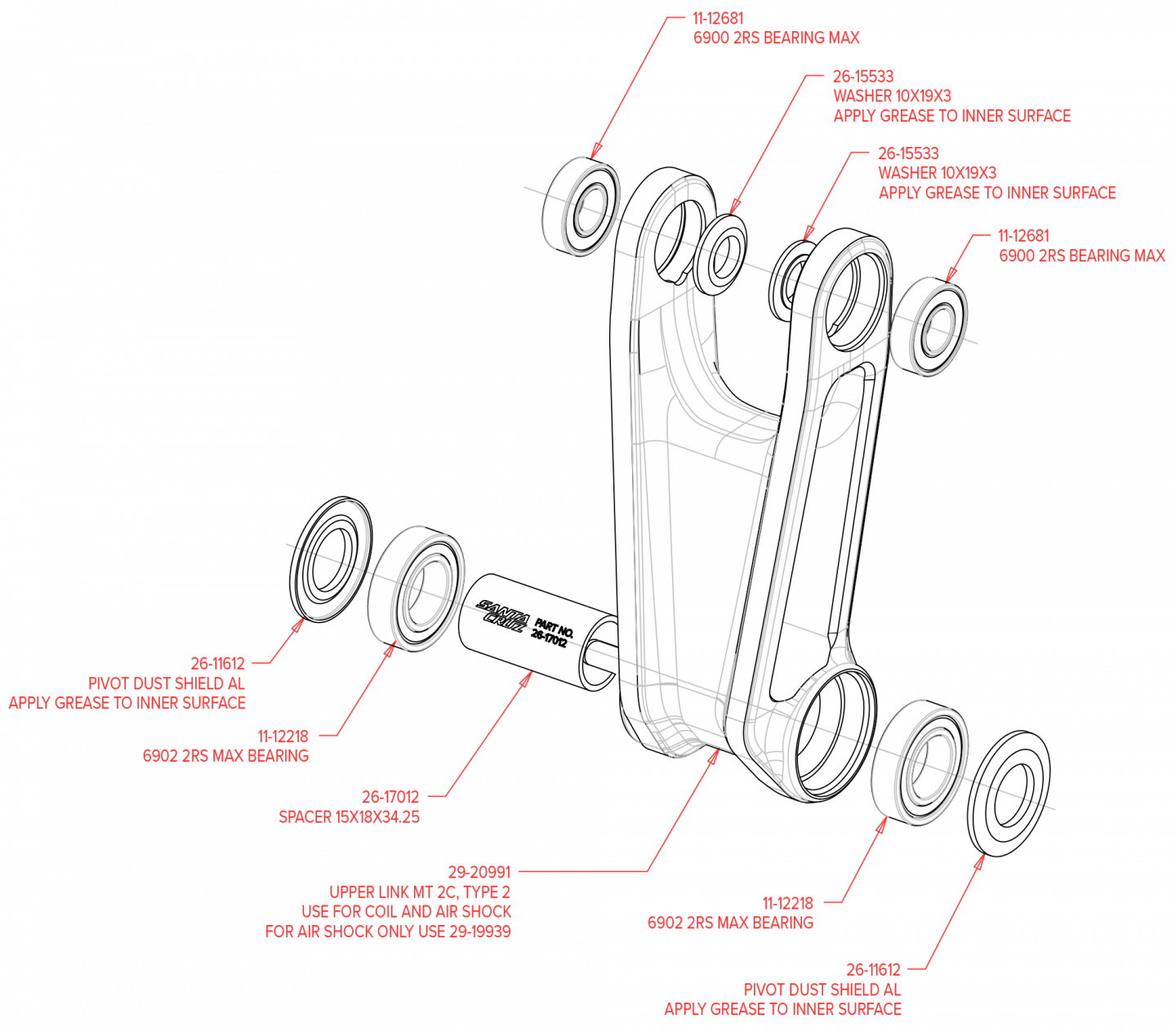

  • Schematics: 1, 2, 3, 4, 5, 6
Stem Race Face Turbine Basic
  • Reach: 35mm
  • Rise: ?
Bars Chromag OSX Fubars R35
  • 35mm rise
  • 800mm wide, cut down to 770mm
  • 5º up sweep
  • 8º back sweep
Front hub Novatec D541
  • Torque Cap
  • Holes: 32
  • 15x110mm
Rear hub Novatec D542
  • Holes: 32
  • 12x148mm
Fork Fox 2020 Factory Series 36 Float 29 Grip 2
Shock RockShox Super Deluxe Coil Ultimate
Front rim Race Face AR 27
  • Holes: 32
  • Diameter: 29"
Rear rim Race Face AR 27
  • Holes: 32
  • Diameter: 29"
Spokes DT Swiss Champion
Derailleur SRAM NX 11 speed
Shifter SRAM GX 11 speed
Brakes Shimano XT M8120 m/BL-M8100
Front rotor Trickstuff 203mm
Rear rotor Trickstuff 180mm
Bottom Bracket Race Face X-Type Team XC BSA 68/73mm
Crankset Race Face Aeffect AL Length: 175mm
Chainring Race Face Aeffect AL Teeth: 30
Pedals Race Face Chester
Cassette SRAM XG-1150 10-42t
Chain SRAM PC X1
Grips Santa Cruz Palmdale
Headset Cane Creek
Seatpost Brand-X Ascend XL Dropper
  • Black
  • 200mm
  • 31.6mm
  • 559mm
Saddle WTB Volt Race
Tires Maxxis Minion DHF WT 3C MaxxTerra TR EXO 29x2.5"
Mud Guard Fox

This is an evergreen article. It will stay at this URL, but its content might change in the future. A changelog will be included.

Changelog:
